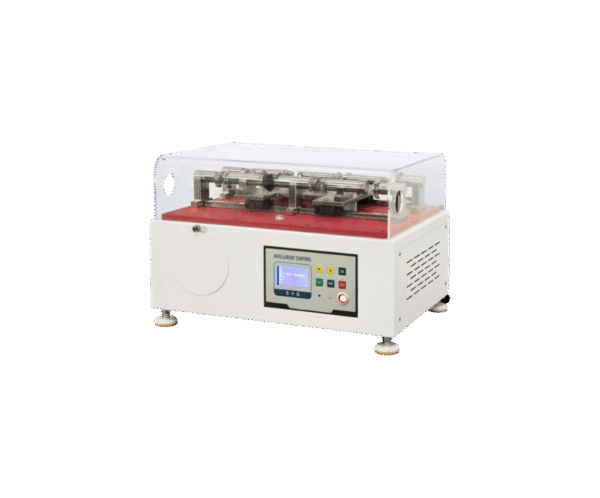

Rubbing Resistance Tester: Premium Testing Machine for Automotive Interior Durability
Our rubbing resistance tester is a specialized testing machine engineered to evaluate the rubbing resistance of leather and similar materials used in automotive interiors. Designed in compliance with strict leather selection standards from leading manufacturers—including General Motors (US), Ford Motor Company (US), and Citroën (France)—it ensures your materials meet the highest industry durability requirements.
Why Choose This Rubbing Resistance Tester?
As a top-tier testing machine, it combines precision, versatility, and user-friendly design to deliver reliable results for automotive interior material testing:
Intuitive Control: Full touch operation with a large blue-backlit screen, supporting both Chinese and English interfaces to minimize operational errors.
Industrial-Grade Performance: Equipped with an MCU control system for strong anti-interference capabilities and fast data transmission, ensuring stable testing even in busy lab environments.
Convenient Operation: Specialized inching function simplifies specimen clamping, while open parameter settings allow adaptation to diverse testing standards.
Smart Counting: Microcomputer-based electronic counting with power-off memory; automatically stops when the preset cycle count is reached, eliminating manual monitoring.
Technical Specifications
Parameter
Details
Testing Speed
100–500 rpm (adjustable)
Fixture Dimensions
Φ25 mm
Stroke
12 mm
Test Capacity
12 specimens simultaneously
Controller
LCD display (70×40 mm)
Dimensions & Weight
60×40×40 cm / 80 kg
Power Supply
AC 220V 50Hz
Included Attachments
Chinese instrument manual
Instrument warranty card
CNAS international third-party calibration report (ensuring global accuracy recognition)
Ideal for automotive manufacturers, leather suppliers, and quality control labs, our rubbing resistance tester is the trusted testing machine to validate the durability of automotive interior materials. Invest in this tool to ensure your leather and similar materials stand up to daily wear, meeting the rigorous standards of global automotive leaders.
Rubbing Resistance Tester is engineered in reference to leather selection standards for automotive interiors, compliant with specifications from leading manufacturers such as General Motors (US), Ford Motor Company (US), and Citroën (France). It is designed to evaluate the rubbing resistance of leather and similar materials used in car interiors, ensuring they meet industry durability requirements.
Key Features
Full touch control with a large-screen display featuring a sleek blue backlight.
Supports both Chinese and English interfaces for easy operation, minimizing the risk of misuse.
Equipped with an industrial-grade MCU control system, offering strong anti-interference capabilities and fast data transmission.
Includes a specialized inching function for more convenient specimen clamping.
Open parameter settings allow the instrument to adapt to testing requirements of different standards.
Microcomputer-based electronic counting with power-off memory; automatically stops when the preset cycle count is reached.
Technical Specifications
Testing speed: 100–500 rpm (adjustable)
Fixture dimensions: Φ25 mm
Stroke: 12 mm
Number of test specimens: 12 pieces
Controller: LCD display (70×40 mm)
Dimensions & weight: 60×40×40 cm / 80 kg
Power supply: AC 220V 50Hz
Included Attachments
① Chinese instrument manual ② Instrument warranty card ③ CNAS international third-party calibration report
